Linux系统ZMIN条码打印机安装教程
ZMIN Label Printer Linux Driver Installation and Setup

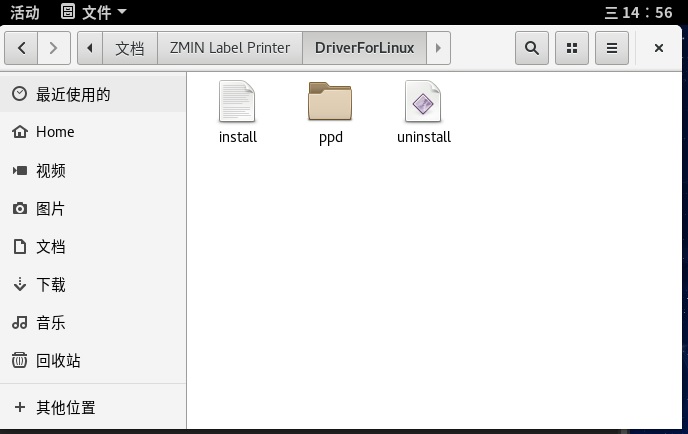

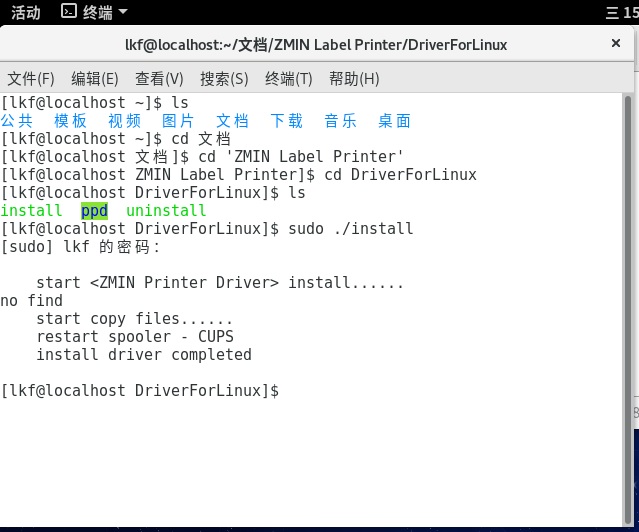

1、Install Linux Driver under Fedora 24
2、Add a ZMIN Label Printer – CUPS

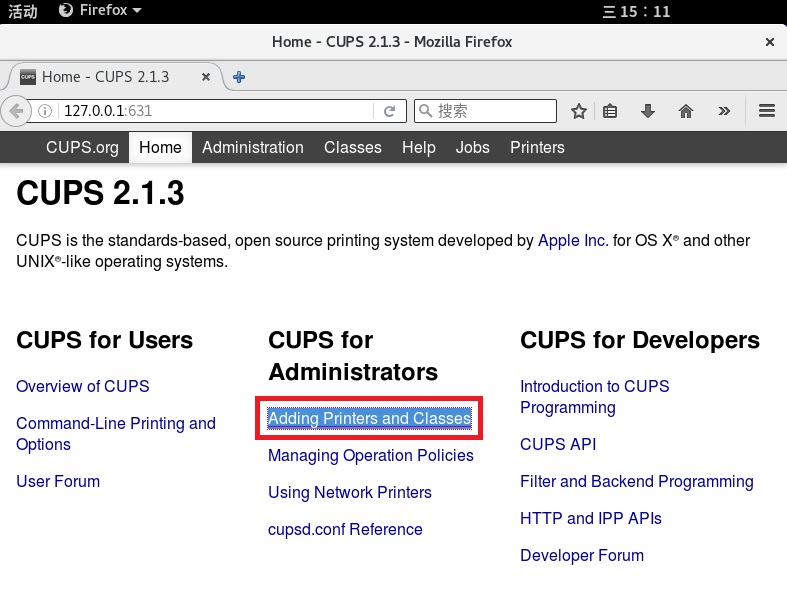

1)open a web browser and type "http://127.0.0.1:631" in the address bar, click "Adding Printers and Classes"

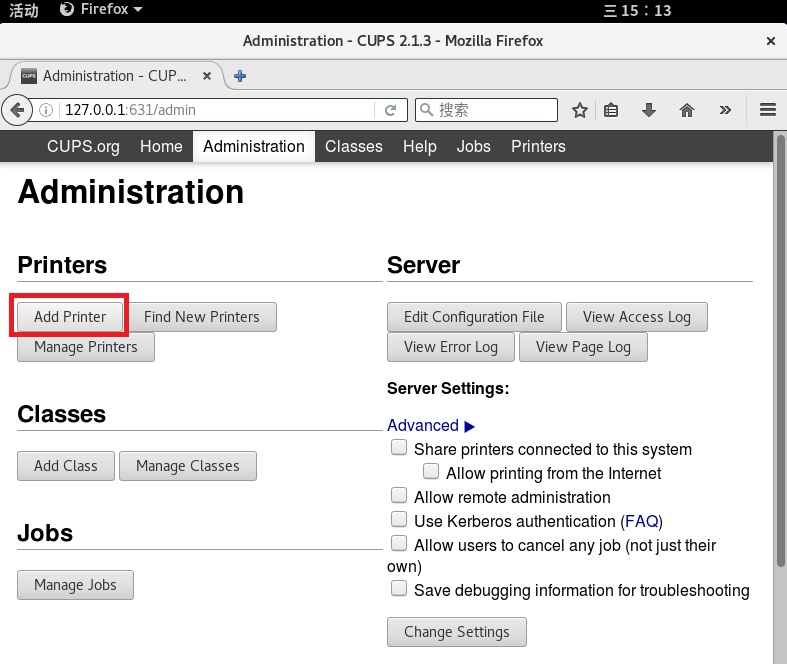

2)click "Add Printer"

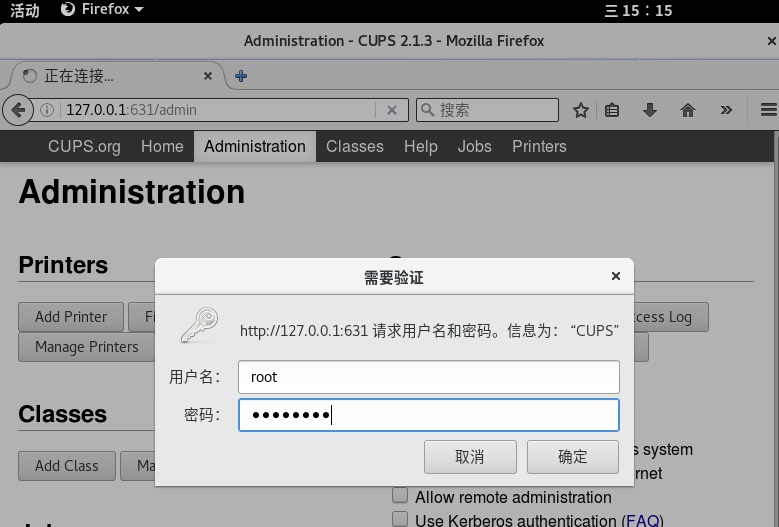

3)root account login

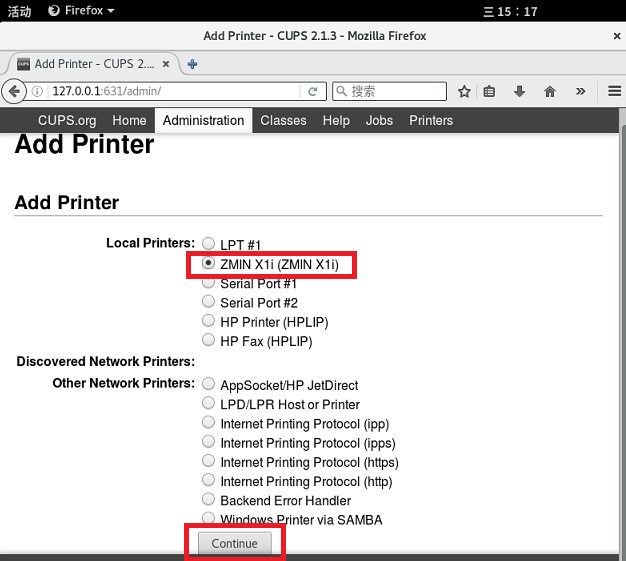

4)select Local Printers:"ZMIN X1i(ZMIN X1i)",click "Continue" button.

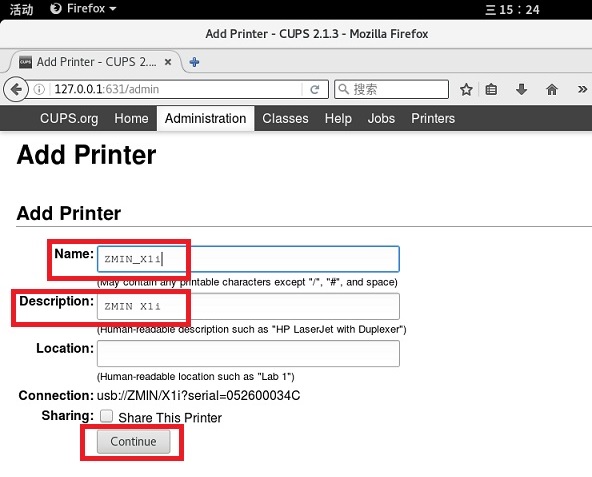

5)input printer's name and description,location is unessential,click "Continue" button.

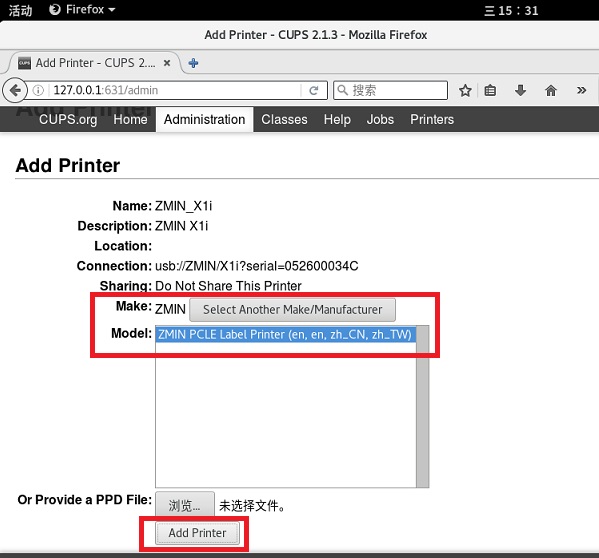

6)select "Make:ZMIN,Model:ZMIN PCLE Label Printer(en,en,zh_CN,zh_TW)",click "Add Printer" button.

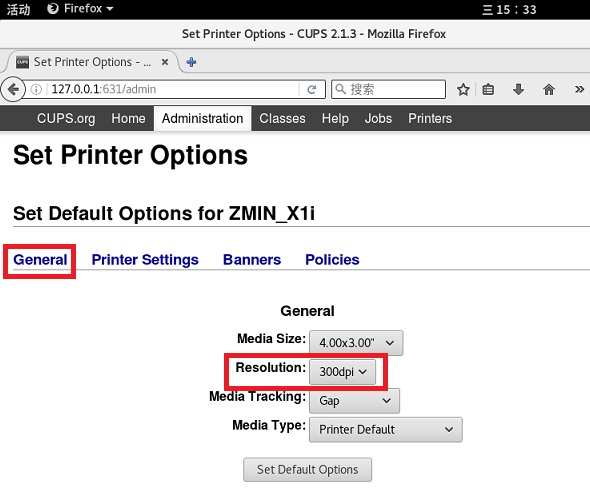

7)Set Printer Options,be sure to select the correct resolution.

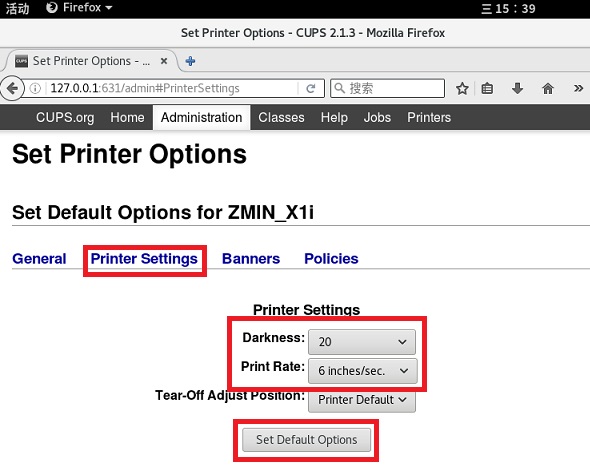

8)modify Media Size,Darkness,Print Rate,click "Set Default Options" button.

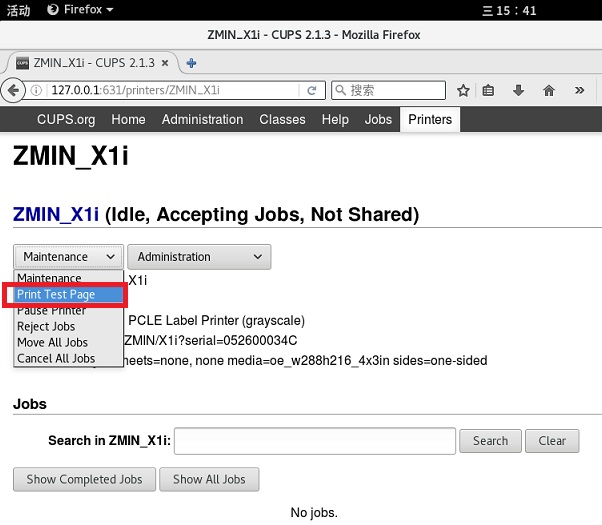

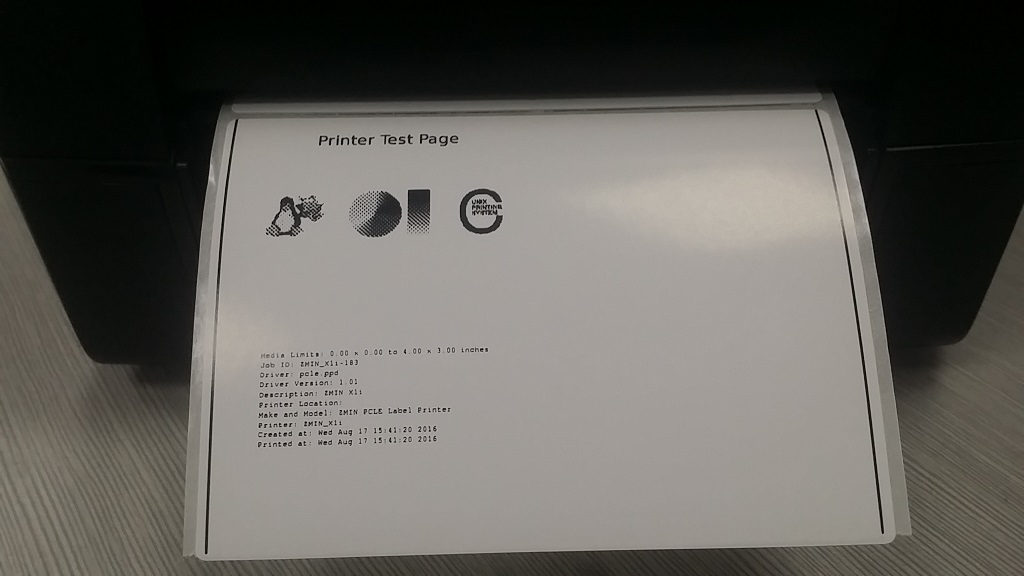

9)add a ZMIN label printer finished,print a test page.
